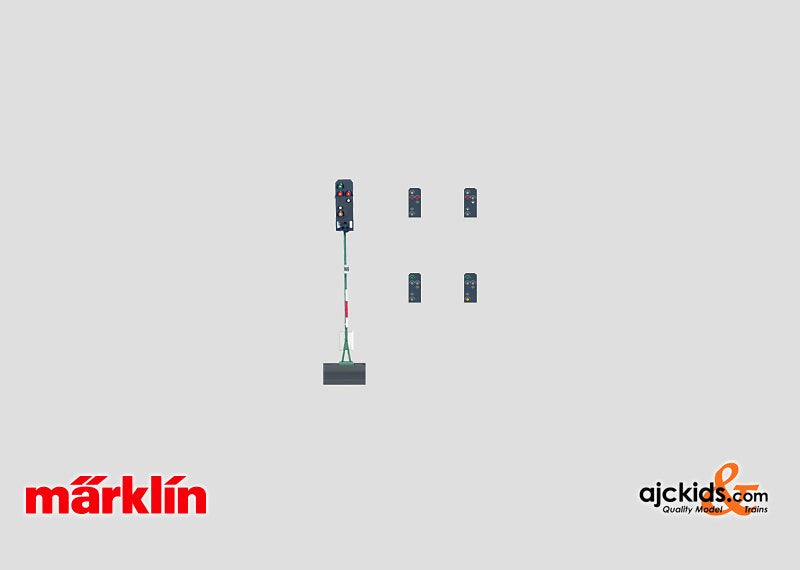

Marklin 76494 - Color Light Home Signal (Exit Signal)

Prototype: German Federal Railroad (DB) standard design exit signal.

4 settings: "Stop" - red/red (Hp00), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2,) as well as "Stop, Switching Permitted" - red/white/white (Hp0/Sh1).


Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder.

Height without base 78.0 mm /3-1/16".


Highlights:

• Exit signal for use in station areas.
• Marklin 76496 is an Exit Signal with distant signal.
• An appropriate distant signal by itself is item Marklin 76480 and Marklin 76481, or on entry signal, item Marklin 76497.
• Built-in yard signal with white light.
