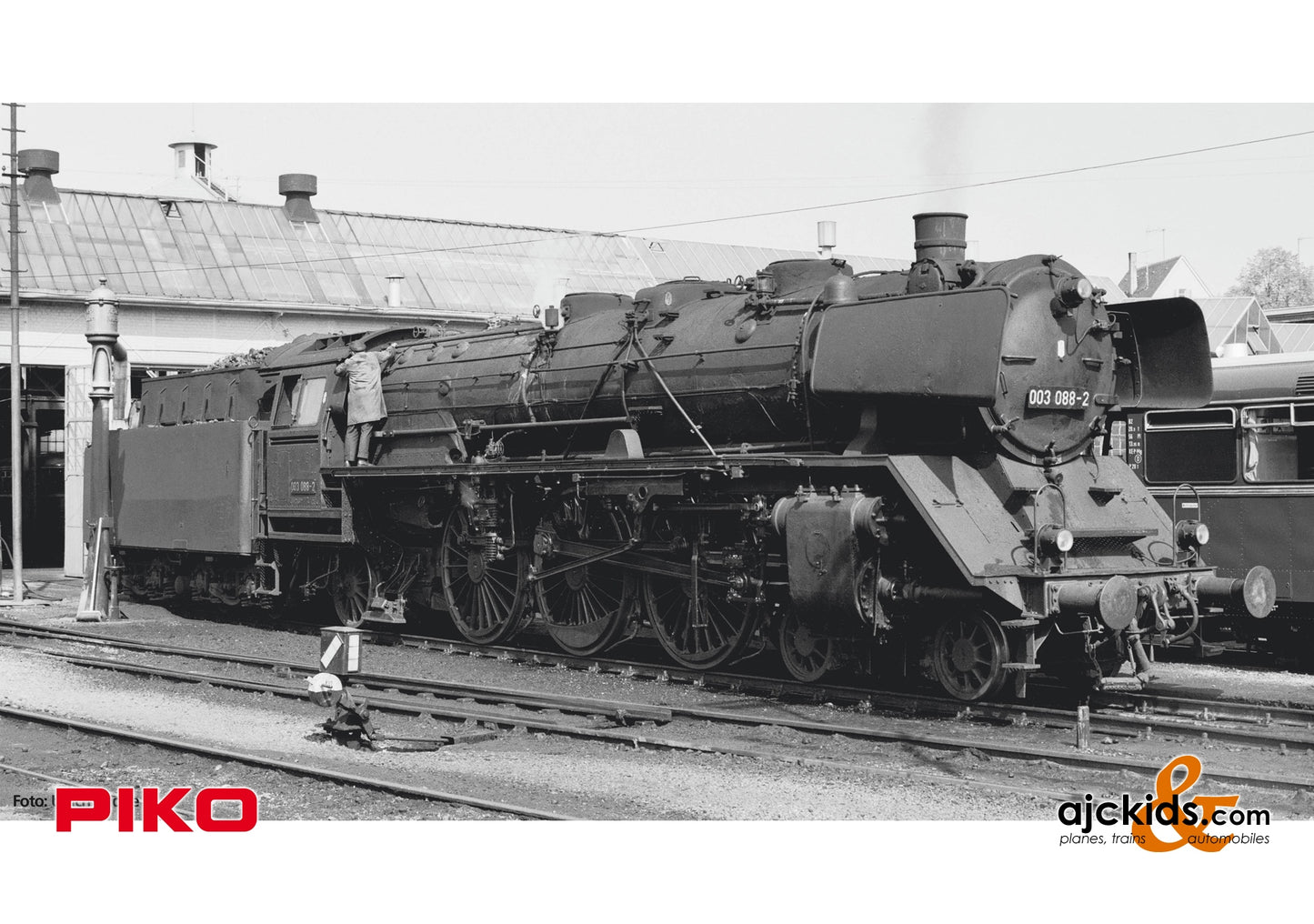

Piko 50682 - BR 003 Steam Locomotive, Sound DB IV

Skip to product information
1 of 1

$401.49
Regular price $40149
Regular price $0.00 Sale price $40149
Sale Sold out
Shipping calculated at checkout.

Available to order, not in stock here (can email for estimate)

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4015615506829

System: DC 2-Rail.

View full details

BR 003 Steam Locomotive, Sound DB IV

New Piko item for 2023: For use on lines with a maximum wheelset load of 18 t, a total of 298 class 03 unit express locomotives were built for the Deutsche Reichsbahn between 1930 and 1938. The design was based on the class 01, whose wheelset running mass was more than 20 t. To reduce the overall mass, the class 03 had a lighter ingot frame and a smaller boiler and cylinder. While the first 122 machines were initially approved for a maximum speed of 120 km/h, this was 130 km/h for the later units ex works. In 1959, the DB's stock comprised a total of 145 examples of the class 03. Nine years later, this had been reduced to 45 of the locomotives now designated as class 003, the last three of which were finally z-delivered in 1972.

Arthur Honegger once dedicated a musical composition to the elegant Pacific steam locomotives. With the 03, such a machine rolls into the PIKO assortment. The high slender boiler and the airy bar frame with a clear view also characterise the silhouette of the machine in the model. The filigree chassis with fine spokes and very plastic balance weights looks particularly graceful. The new construction has matching add-on parts such as bells, pumps and lamps. Numerous attached boiler pipes complete the outer impression. The drive including flywheel mass accommodated in the tender ensures ideal driving characteristics.

The factory digital versions of the model have switchable lighting in the engine and on the driver's cab, as well as a red flickering firebox. These functions as well as various sounds can be controlled with the factory-integrated PIKO sound decoder. The sound version also has an integrated steam generator ex works.

Additional Information:

Item number: 50682
EAN: 4015615506829
Sound yes/no: Sound
type of current: 2-Rail (DC/DCC)
railway administration: DB
era: IV
kind of measurement: LoB / Length over Buffers
measurement: 275
minimum radius: 358
digital interface: NEM 658 PluX22
Decoder Installed: PluX22 Sounddecoder
Interior Lighting / Lights: Digital switchable Führerstandsbeleuchtung und Feuerbüchsenbeleuchtung (mit PluX22 Decoder)
Number of Traction Tires: 2
Coupling: NEM Schacht
Sound: PIKO Sound-Decoder installed
directional lights: Direction dependent lighting white / red
Special Features: Smoke generator installed
age recommendation: 14 and up

EAN/UPC: 4015615506829
