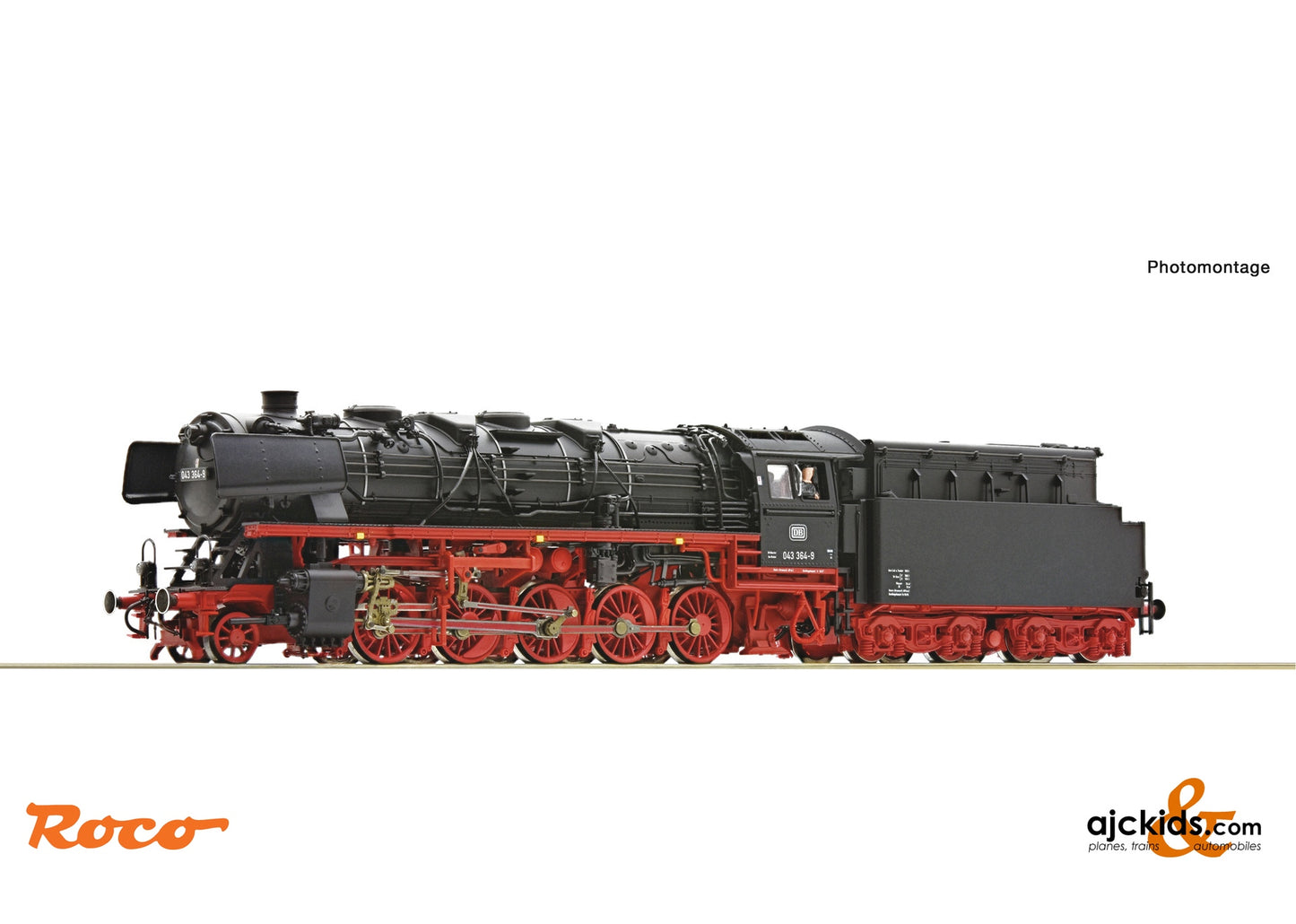

Roco 7120018 - Steam locomotive class 043, DB
Couldn't load pickup availability
Available to order, not in stock here (can email for estimate)
Scale: H0-Scale
EAN/UPC: 9005033072391
System: 3-Rail AC (Märklin).
Steam locomotive series 043 of the Deutsche Bundesbahn.
Drive on two axles of the tender and via cardan shaft on all five driving axles of the locomotive.
■ With hand-painted boiler rings
■ Used in heavy freight train service
■ Metal wheels with filigree spokes
The steam locomotives, known as "Jumbo" because of their tractive power, were used with great success in almost all of Germany and in many other European countries. The maximum forward speed was 80 km/h, and they could travel at 50 km/h in reverse. Some of these already very powerful machines saw a further increase in power to 2,100 hp (1,546 kW) at the Deutsche Bundesbahn when they were converted to oil firing in 1955. The DB's oil-fired locomotives were designated series 043 from 1968.
| coupling | NEM 362 shaft with KK kinematics on the tender |
| minimum radius | 358 mm |
| flywheel | Yes |
| number of driven axles | 7 |
| number of axles with traction tires | 2 |
| article number | 7120018 |
| track | H0 |
| epoch | IV |
| railway company | DB |
| Motor | 5-pole motor |
| headlight | 3-headlights at both ends of the vehicle, changing with direction of travel |
| power system | AC |
| interface | Electrical interface for traction vehicles according to NEM 652 with plug-in device |
| digital decoder | NEM 652 |
| sound | Yes |
| length over buffers | 260 mm |
EAN/UPC: 9005033072391
