Trix 16125 - Diesel Locomotive

Skip to product information
1 of 1

$279.99
Regular price $27999
Regular price Sale price $27999
Sale Sold out
Shipping calculated at checkout.

Shows in stock at Ajckids

Add To Wishlist

Scale: N-Scale

EAN/UPC:

View full details

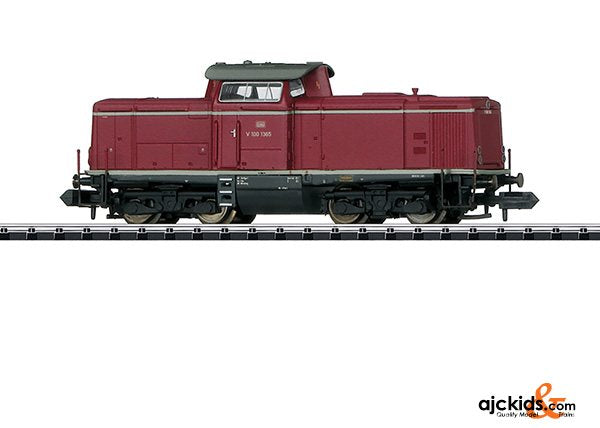

Prototype: German Federal Railroad (DB) diesel locomotive, road number V 100 1365. Version in Era III crimson red. Use: Passenger and freight trains.

Highlights

  • Body and frame constructed of metal.
  • Warm white LEDs for the lighting.
  • Cab lighting.
  • Digital sound with many functions.

Product description

Model: The locomotive has a built-in digital decoder for operation with DCC and Selectrix. The motor has a flywheel. 4 axles powered. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel and can be controlled digitally. The locomotive has separately applied grab irons.

Length over the buffers 75 mm / 2-15/16".

One-time series.

Publications

- Fall New Items 2018 - Main Catalog 2018/2019

Prototype information

The class V 100 diesel locomotives were developed in the Fifties initially as a replacement for the class 64 and 86 steam locomotives and the former were planned for light service on main lines and mixed use on branch lines. The V 80 served as a prototype, but the new locomotive was to be considerably more cost effective. MaK in Kiel was contracted to develop this locomotive in cooperation with the DB's central office in Munich. Late in the fall of 1958 MaK delivered five pre-production locomotives, road numbers V 100 001-005 (later V 100 1001-1005, and from 1968 on 211 001-005) with 1,100 horsepower motors as well as road number V 100 006 (later V 100 2001, and from 1968 on 212 001) which had been equipped with a 1,350 horsepower motor. In 1961/62, an order was placed for 20 pre-production locomotives of the class V 100.20 with the more powerful 1,350 horsepower motor as a "lightweight main line locomotive".

Between 1963 and 1966, the German locomotive builders delivered two groups totaling 360 units of this more powerful variation. In 1965, ten units (road numbers V 100 2332-2341) from the latter series were equipped with hydrodynamic brakes for use on the steeply graded route from Rastatt to Freudenstadt. The squared off, boxy shape was characteristic for the V 100 and clearly borrowed from the V 60 for this look. The motor output was transmitted to the hydraulic Voith transmission by means of an elastic coupling and universal joint shaft. The transmission had stepped gears allowing operation on the line (maximum speed 100 km/h / 63 mph) or in switching operations (maximum speed 65 km/h / 41mph).

The trucks with their welded tube construction were a new design, and the wheel set suspension arms were mounted on them by means of silent blocks. The engine layout in the front, longer hood was very accessible from outside by means of a hood-shaped sliding door. These units were general-purpose locomotives and were run with light and medium passenger, fast passenger, and freight trains on main lines and branch lines. In 1968, the V 100.20 was assigned the computer-generated class designation of 212; the locomotives for steeply graded routes were run as the class 213.

From the mid-Nineties on these locomotives were used less and less. The last units were taken out of service on the DB AG's freight division (Railion) in December of 2004. These retired locomotives were not scrapped for the most part; most were sold via locomotive dealers. Many are used today by track construction firms in France and Italy. Private German railroads and foreign state railroads were and still are willing buyers of the V 100.20 (212).

Even the DB has not dispensed entirely with these proven locomotives. Twelve re-motored units are in operation on the DB Fahrzeugdienste GmbH (locomotive and car maintenance unit of the DB) and six of the 212/213 can be found at the DB Bahnbau-Gruppe GmbH (track maintenance unit of the DB). Fifteen units remain available rebuilt as the class 714 for the DB Netz Notfalltechnik (network emergency technology unit of the DB) and serve as motive power for rescue trains that are used chiefly for emergencies on the newly constructed routes.

Features

q One-time series
d Era III
% DCC/ Selectrix decoder
! Sound effects circuit
P Triple headlights and two red marker lights that change over with the direction of travel.
, Lighting with warm white LED’s
Z Metal locomotive frame and body
\ For adults only

Warning

ATTENTION: adults only
DCC SX2 SX MFX
Headlight(s) X X X
Engineer’s cab lighting X X X
Diesel locomotive op. sounds X X
High Pitch Horn X X
Direct control X X
Sound of squealing brakes off X X
Rear Headlights off X X
Headlight(s) X X
Front Headlights off X X
Bell X X
Low Pitch Horn X X
Compressor X X
Station Announcements X X
Conductor's Whistle X X
Doors Closing X X
Special sound function X X
Sanding X X
Sound of Couplers Engaging X X
Rail Joints X X
