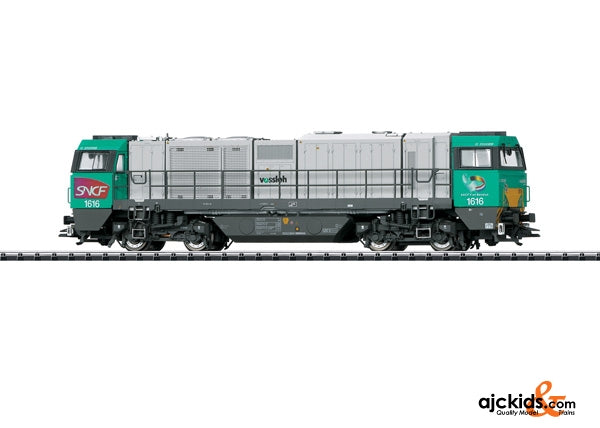

Trix 22922 - SNCF cl G 2000 BB Vossloh Diesel Locomotive

Prototype: Class G 2000 BB Vossloh heavy diesel locomotive with symmetrical cabs. French State Railways (SNCF) locomotive, assigned to the freight service area Fret Benelux. Light gray/green basic paint scheme with umbra gray frame. Locomotive road number 1616. The locomotive looks as it did around 2010.

Highlights

• Frame and parts of the body constructed of metal.
• Cab lighting can be controlled separately in digital operation.
• Digital decoder and extensive operation and sound functions included.


Model: The locomotive has a digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. All 4 axles powered by means of cardan shafts. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends, the double "A" lights are on at both ends. The cabs have lighting and it can be controlled separately at both ends in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has many separately applied details. The side handrails on the frame are constructed of metal. The locomotive has detailed buffer beams. Brake hoses that can be plugged into the end of the locomotive are included. End covers are included and can be mounted on the buffer beam.

Length over the buffers 20 cm / 7-7/8".

Productinfo

SNCF© is a registered brand of SNCF Mobilités. All rights reserved.

This model can be found in an AC version in the Märklin H0 assortment under item number 37209.

Vossloh G 2000-3 BB for SNCF Fret Benelux The class G 2000 BB diesel hydraulic locomotive is viewed at Vossloh Locomotives GmbH (formerly MaK) in Kiel as the most powerful unit of its kind. It was presented in its original version for the first time in September of 2000 at the Innotrans Exhibition in Berlin, Germany. The first thing to strike the observer was the narrow superstructure with side catwalks and the asymmetrical cabs at the ends. Both ends seen in the direction of travel showed the cab at the front of the locomotive stretching to the left across the complete width of the locomotive. To the right the cab ended even with the narrow superstructure. Next to it, at both ends was a switching step that was marvelously suited for operations with radio remote control. With it, switching work occurring at the end of a run could be done with no problem and without a second locomotive. Special features of the G 2000 BB are a fully developed building block design principle, the selection of high quality components, as well as a high level of reliability and availability. In addition to the original version, the G 2000 BB was also built in two variations between 2003 and 2010 with a cab across the entire width of the locomotive. This enabled a considerably more spacious cab with two seats and equally good sight down the track. The first units as the G 2000-2 BB (engineer's desk positioned on the left) went to different private transportation firms in Italy, the G 2000-3 BB variant (engineer's desk positioned on the right) to France, Belgium, the Netherlands, and Germany. Even the Belgian State Railroad (SNCB) has several units on its roster as leased locomotives. At its introduction to the market, the G 2000 set new standards for diesel road engines regarding design, functionality, and life cycle costs (LCC). It has an output of up to 2,700 kilowatts / 3,621 horsepower, a maximum speed of 120 km/h / 75 mph, 5,000 liters / 1,321 gallons tank capacity, and a service weight of 87 to 90 metric tons. This unit can be used almost everywhere. Even one of the freight service divisions of the SNCF – Fret Benelux – leased two brand new G 2000-3 BB units from the leasing firm ACT (Angel Trains Cargo) in April of 2007 with the road numbers 1615 and 1616. They ran in freight train service between the Netherlands, Belgium, and France. The lease contract ended in 2011 and new lessees were initially EPF (Europorte France) and starting in 2015/16 finally the GTF SAS in Barbizon.
