Trix 25984 - Class 800 Steam Locomotive Union Pacific

Skip to product information
1 of 10

$739.95
Regular price $73995
Regular price $0.00 Sale price $73995
Sale Sold out
Shipping calculated at checkout.

Sold out

Add To Wishlist

Scale: H0-Scale

EAN/UPC: 4028106259845

System: 2-Rail DC.

View full details

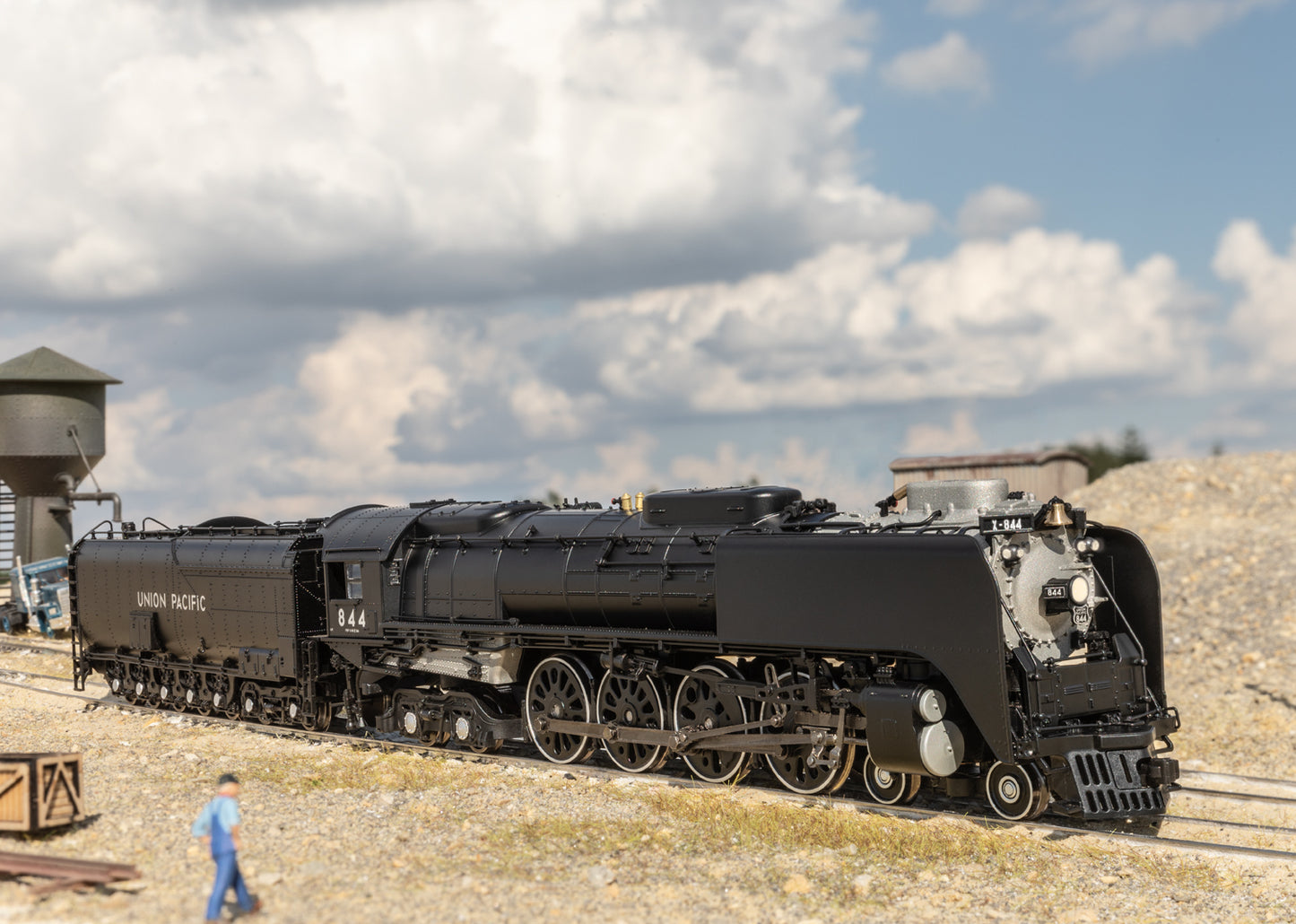

Prototype: Union Pacific Railroad (UP) class 800 heavy steam locomotive, with an oil tender. Locomotive road number 844. The locomotive looks as it did starting in 2019.

Highlights

  • Dynamic steam exhaust.
  • Locomotive constructed mostly of metal.
  • Many separately applied details.

Product description

Model: The locomotive has a digital decoder and extensive sound functions. It also has various operating sounds such as oil and water being replenished or the opening and closing of sliding windows and ventilation hatches on the cab, all of which can be controlled digitally. The locomotive has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 4 axles powered. Traction tires. The locomotive has Boxpok driving wheels. Maintenance-free warm white LEDs are used for the headlight on the locomotive and tender, cab lighting as well as number boards and marker lights, all of which can be controlled digitally. There is a factory-installed smoke generator with dynamic steam exhaust. The headlights and smoke unit contact will work in conventional operation and can be controlled digitally. There are two powerful speakers in the tender. Imitation couplers in a standard pocket can be mounted on the pilot on the front of the locomotive. There is a close coupling with a mechanism between the locomotive and tender. The locomotive has separately applied metal grab irons. There are many other separately applied details. There is a figure of a locomotive engineer and a fireman in the cab.

Length over the couplers approximately 41 cm / 16-1/8".

Publications

Notes for operating this locomotive: The locomotive can be used on curved track with a radius of 437.5 mm / 17-1/4" (Radius 2) or more, however we recommend larger radii. Due to the overhang of the long boiler, signals, catenary masts, bridge railings, tunnel portals, etc. must be installed for sufficient clearance on curves. The track must be well mounted due to the heavy weight of the locomotive. The locomotive can only be run through a turntable or transfer table. Products bearing "Union Pacific" are made under trademark license from the Union Pacific Railroad Company.

This model can be found in an AC version in the Märklin H0 assortment under item number 37984. The special run for the anniversary "150 Years of the Golden Spike" in May of 2019 can be modelled with this locomotive together with the 22014/22163 Big Boy and the 43617 passenger car set.

Publications

- Fall New Items H0 2021

Prototype information

Union Pacific 844 “The only steam locomotive never retired”, is how road number 844 of the Union Pacific Railroad (UP) was accurately described, because it was actually the only steam locomotive of a large American railroad company, which was never taken out of service. This unit built as a "Northern" type was built in 1944 as the last steam locomotive for the UP and was used until 1959. Then it was initially kept in reserve as an operational unit and was to be scrapped along with the other UP steam locomotives. Yet, as early as 1960, those responsible at UP recognized the promotionally positive advantages of special steam runs and kept it in operational condition. It thereby formed the basis of the UP steam locomotives for special services, which were increased with the "Challenger", road number 3985, in 1981 as well as the "Big Boy", road number 4014, in 2019.

The UP bought 20 coal-fired, powerful 4-8-4 general-purpose steam locomotives in a two-cylinder design for the first time in 1937 from ALCO for heavy express and freight train service. They still had 1,955.8 mm / 77" driving wheels (UP road numbers 800-819). Two more series followed in 1939 (UP road numbers 820-834) as well as 1944 (UP road numbers 835-844), now with 2,032 mm / 80" driving wheels and even heavier in construction.

The maximum permissible speed was set at 90 mph (145 km/h), whereby the running gear was designed for 100 mph (161 km/h). This was a special design with lightweight construction of the driving and coupled wheels of the "Boxpok" type. The last series was even equipped with two blast pipes (double smoke stacks) to improve performance. The performance data was impressive: boiler pressure of 20.7 bar / 300.23 pounds per square inch; grate area of 9.3 square meters / 100.1 square feet, heating area of 399 square meters / 4,294.8 square feet, superheater area of 130.1 square meters / 1,400.4 square feet. The weight of the locomotive and tender 411.9 metric tons, tractive effort 283.8 kilonewton / 63,801 pound-force, and a performance of 4,938 horsepower.

A remarkable thing about the two last series was the large seven-axle tender, the "Centipede" design with a leading truck and five wheelsets behind it mounted rigidly in the frame. Conceived as a countermeasure to the competition from diesel locomotives, it was planned to enable long locomotive runs. With full supplies (25 metric tons of oil and 88,971 liters / 23,503.6 gallons of water), it weighed almost as much as the locomotive itself. Due to the nuisance of gas and smoke to the locomotive crews, these units were equipped in 1946 with smoke deflectors similar to the German "Wagner" design and they were converted to oil firing not least because of the coal miners' strike.

Up into the second half of the Forties, these locomotives could be seen pulling prestigious UP express trains such as the "Overland Limited", "Los Angeles Limited", "Portland Rose", and "Challenger". During these runs, record-setting speeds were reportedly reached: Road number 841 pulled 25 heavy Pullman cars across Nebraska and reached maximum speeds between 105 and 112 mph (169-180 km/h). There was a report of another unit reaching the 130 mph mark (209 km/h). In their glory days, the class 800 locomotives racked up to 15,000 miles per month (24,100 km). Yet, in their last decade, they had to be content with freight trains until the last units were finally retired in 1962.

Features

_Era VI
§DCC decoder
`Digital decoder with digitally controlled functions. The quantity depends on the controller being used.
!Sound effects circuit
>Single headlight front and rear that changes over in one direction of travel
,Lighting with warm white LED’s
WMetal locomotive frame and boiler
1With NEM coupler pocket and mechanism for close couplers
\For adults only

Warning

ATTENTION: adults only
ATTENTION: not for children under 15 years
DCC SX2 SX MFX
Headlight(s) X X
Smoke generator contact X X
Steam locomotive op. sounds X X
Locomotive whistle X X
Direct control X X
Sound of squealing brakes off X X
Bell X X
Warning Sound X X
Engineer’s cab lighting X X
Number Board Lights X X
Light Function X X
Letting off Steam X X
Air Pump X X
Water Pump X X
Injectors X X
Auxiliary Blower X X
Coupler sounds X X
Rail Joints X X
Cab chatter X X
Whistle for switching maneuver X X
Replenishing fuel X X
Replenishing fuel X X
Replenishing water X X
Sanding X X
Operating sounds X X
Operating sounds X X
Cab chatter X X
Operating sounds X X
Compressor X X
Light Function X X
Cab chatter X X

EAN/UPC: 4028106259845
