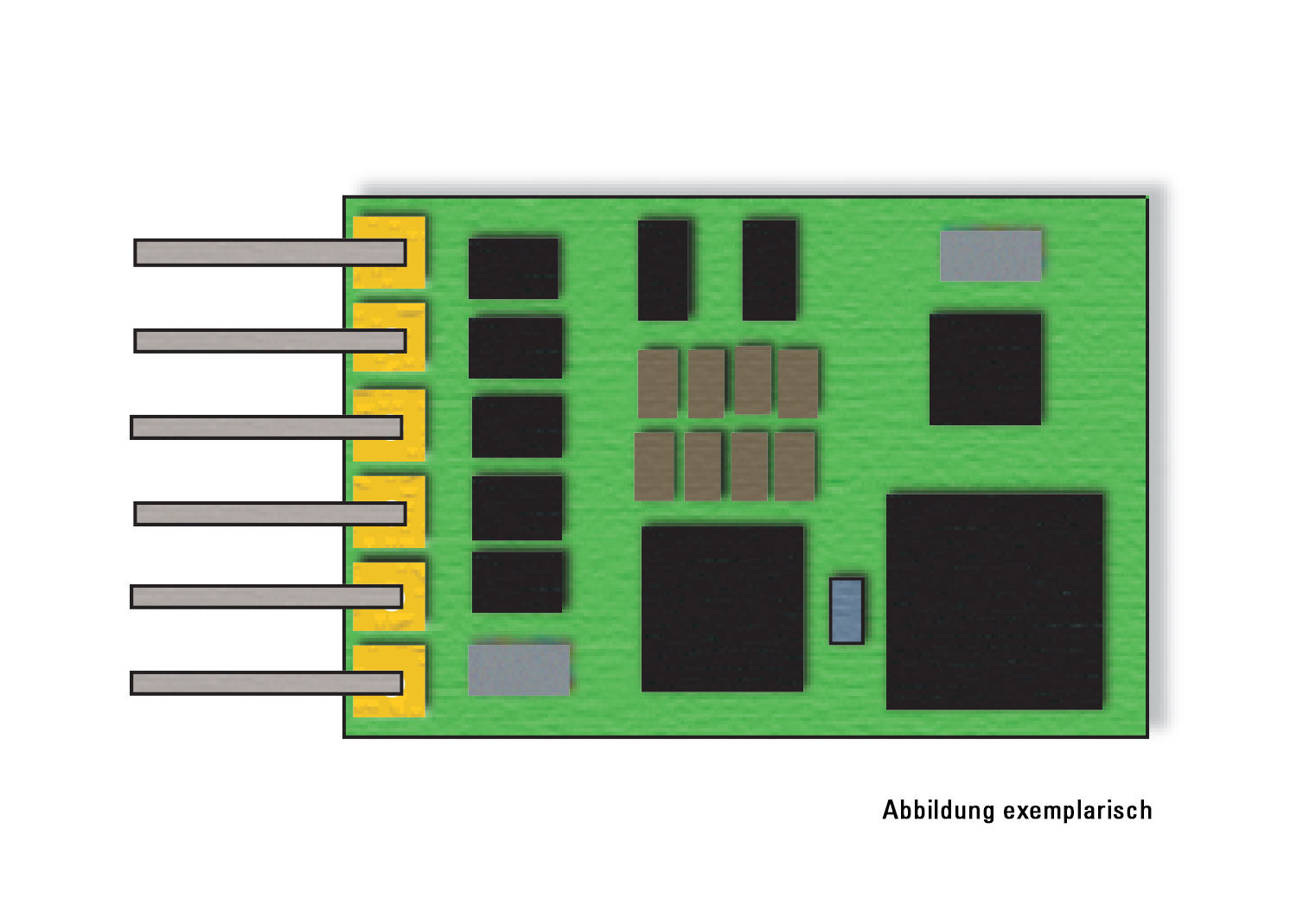

Trix 66841 - Locomotive Decoder for a 6-Pole Connector

N scale decoder. Receiver for all DC locomotives with a current draw up to 1,000 milliamps (motor 1,000 milliamps, lights 300 milliamps).

Suitable for digital locomotives with the 6-pin digital connector .

Can be used universally in the Selectrix/SX2 and DCC format.

• Automatic recognition of digital analog operation.
• Maximum speed can be set.
• Motor impulse variants can be set.
• Automatic load compensation.
• Connections for light functions.
• Connections for an auxiliary function.
• Short circuit protection of the motor outputs.
• Overload protection of the light outputs.
• Overload protection of the auxiliary function.

Programming of additional settings can be done by selecting the address "00", example: finer gradation of the impulse widths (control variants), pole reversal for direction changing. In Selectrix operation: 31 speed levels. (Sx2 127 speed levels). 111 addresses. (Sx2 10,000 addresses). 1 auxiliary function (Sx2 16 auxiliary functions). Block operation with simple diodes (1 or 2 stopping sections). Braking operation with braking diode.

In DCC operation: Manual speed level selection of 14/28 levels. Automatic switchover to 128 speed level. Address can be long or short. Braking operation with direct current and "broadcast-mode" braking generators.

Dimensions approximately 14 x 9 x 1.8 mm / 1/2" x 3/8" x 1/16".
